30-01172
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

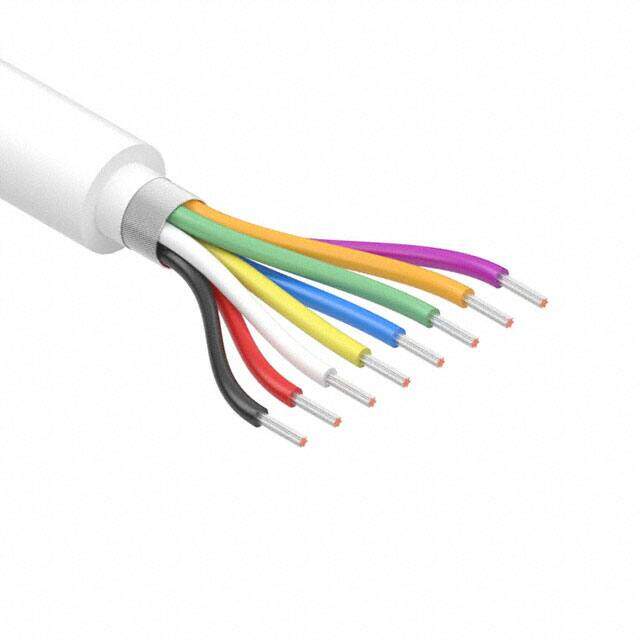

CBL 8CON 28AWG SHLD WHT BIO 153M
PDF
/
Inventory: 6992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Tinned
Technical
Operating Temperature -40°C~70°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 8
Wire Gauge 28 AWG
Voltage 150V
Cable Type Multi-Conductor
Jacket Color White
Conductor Strand 40/0.002
Jacket (Insulation) Diameter 0.146 (3.71mm)
Conductor Insulation High Density Polyethylene (HDPE)
Shield Type Spiral
Shield Coverage 90%
Dimensions
Length 502.0' 153.0m
Jacket (Insulation) Thickness 0.0197 0.500mm
Compliance
RoHS Status ROHS3 Compliant
