30-01091
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

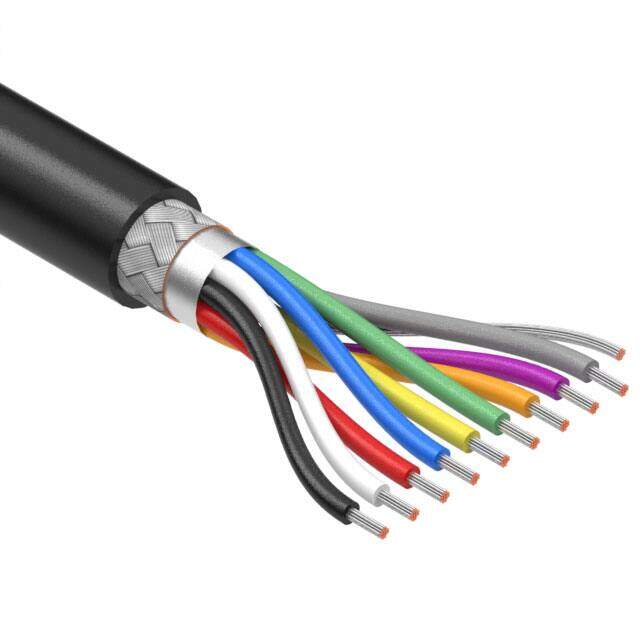

CBL 9CON 24AWG SHLD BLK 30M
PDF
/
Buying Options
Total Price: USD $6.88
Unit Price: USD $6.8816
≥1 USD $6.8816
≥10 USD $5.62848
≥100 USD $4.37712
Inventory: 69
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -25°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 9
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 11/0.0063
Jacket (Insulation) Diameter 0.268 (6.81mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 80%
Dimensions
Length 502.0' 153.0m
Jacket (Insulation) Thickness 0.0315 0.800mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
