30-01083
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

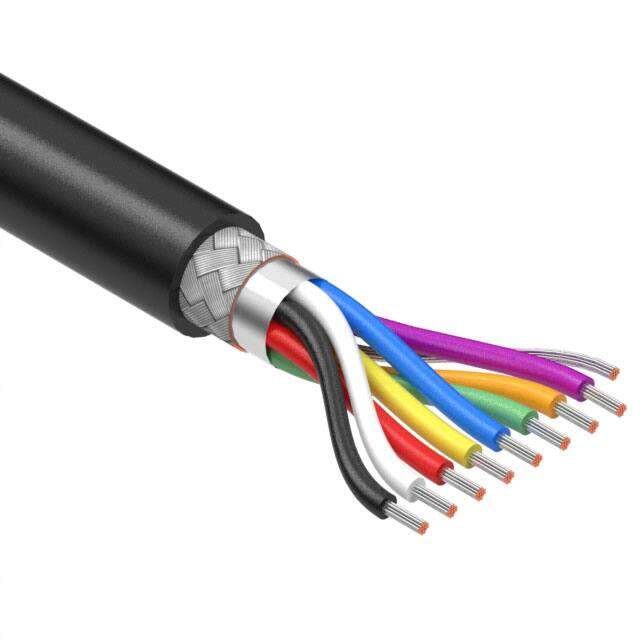

CBL 8CON 28AWG SHLD BLK 153M
PDF
/
Buying Options
Total Price: USD $20.82
Unit Price: USD $20.8208
≥1 USD $20.8208
≥10 USD $17.03504
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2464
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0315 0.800mm
Length 502.0' 153.0m
Technical
Shield Coverage 80%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.228 (5.79mm)
Conductor Strand 7/0.0047
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 28 AWG
Number of Conductors 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -25°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 15 Weeks
