30-01030
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

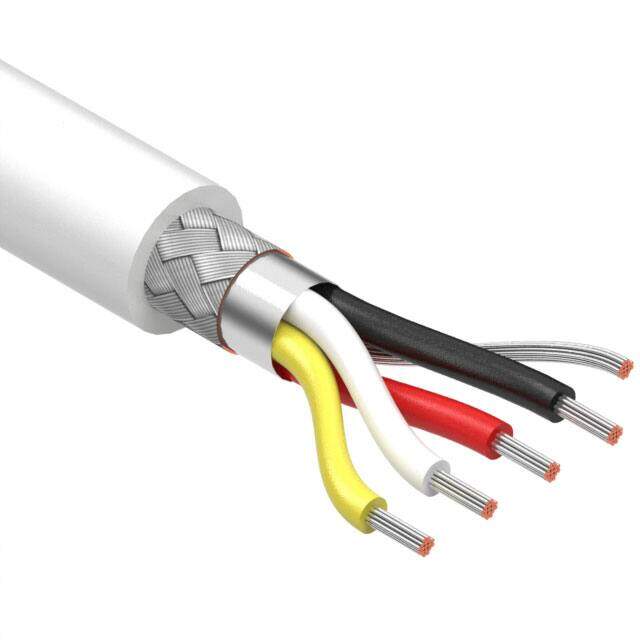

CBL 4CON 22AWG SHLD WHT 153M
PDF
/
Inventory: 7249
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -25°C~80°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color White
Conductor Strand 17/0.0063
Jacket (Insulation) Diameter 0.220 (5.59mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 80%
Dimensions
Length 502.0' 153.0m
Jacket (Insulation) Thickness 0.0315 0.800mm
Compliance
Ratings UL Style 2464
