30-01014
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

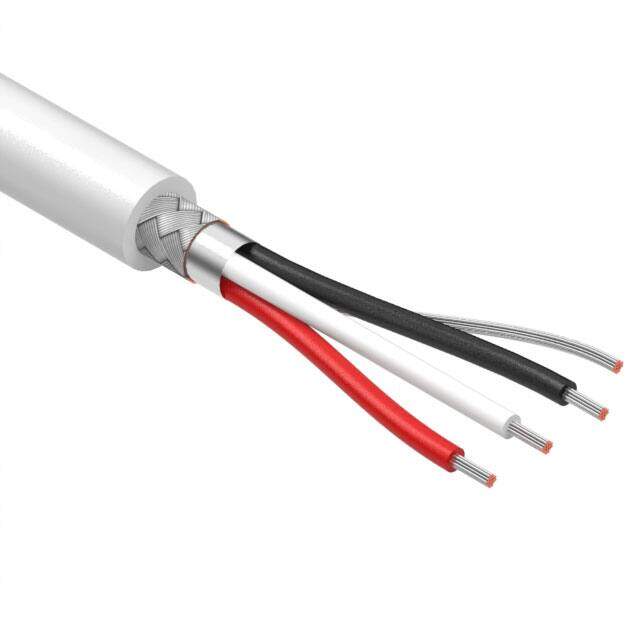

CBL 3CON 18AWG SHLD WHT 153M
PDF
/
Inventory: 7481
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style 2464
Dimensions
Jacket (Insulation) Thickness 0.0315 0.800mm
Length 502.0' 153.0m
Technical
Shield Coverage 80%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.240 (6.10mm)
Conductor Strand 41/0.0063
Jacket Color White
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -25°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 15 Weeks
