30-00934
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

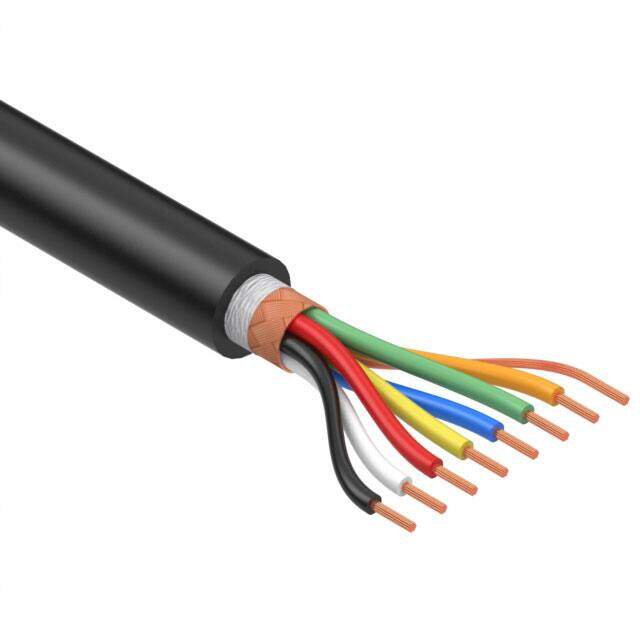

CBL 26AWG TPU SHLD 7CON
PDF
/
Buying Options
Total Price: USD $191.66
Unit Price: USD $191.6552
≥1 USD $191.6552
≥10 USD $156.80896
≥100 USD $121.9636
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Bare
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 7
Wire Gauge 26 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 19/0.0039
Jacket (Insulation) Diameter 0.205 (5.21mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Braid
Shield Coverage 65%
Dimensions
Jacket (Insulation) Thickness 0.0335 0.851mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 20280
