30-00928
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

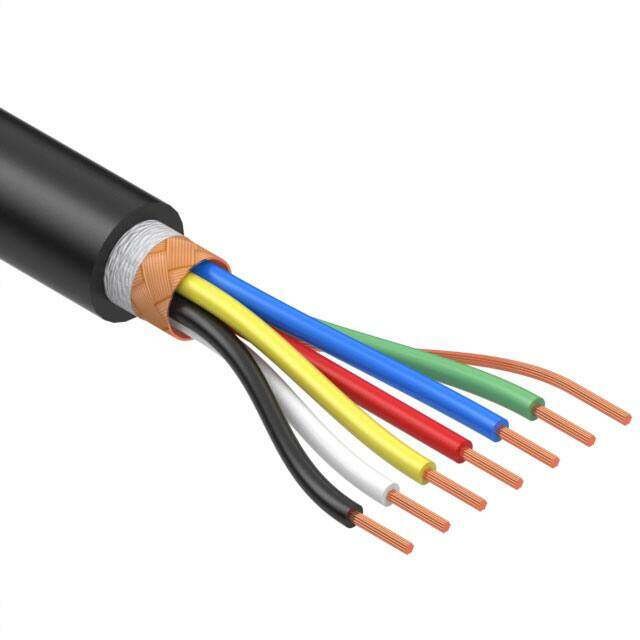

CBL 24AWG TPU SHLD 6CON
PDF
/
Buying Options
Total Price: USD $7.07
Unit Price: USD $7.0664
≥1 USD $7.0664
≥10 USD $5.78336
≥100 USD $4.49768
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Bare
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 6
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 26/0.0039
Jacket (Insulation) Diameter 0.213 (5.41mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Braid
Shield Coverage 65%
Dimensions
Jacket (Insulation) Thickness 0.0327 0.831mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 20280
Alternative Model
