30-00922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

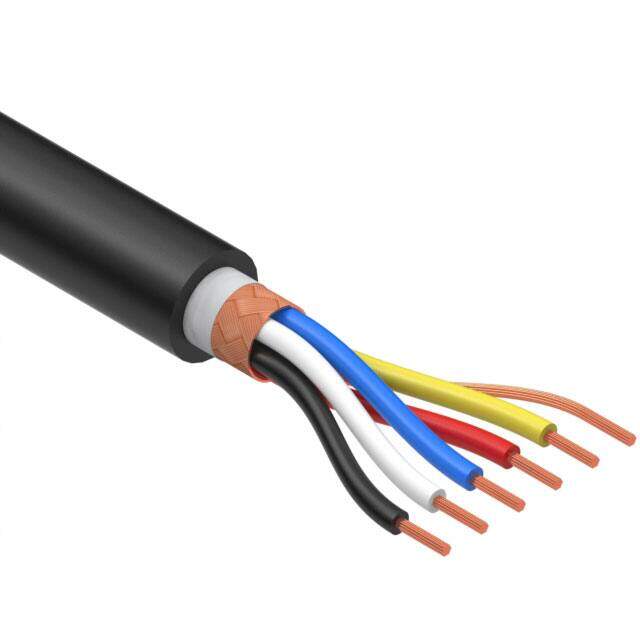

CBL 22AWG TPU SHLD 5CON
PDF
/
Buying Options
Total Price: USD $10.25
Unit Price: USD $10.252
≥1 USD $10.252
≥10 USD $8.38992
≥100 USD $6.5252
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Bare
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 5
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 26/0.005
Jacket (Insulation) Diameter 0.220 (5.59mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Braid
Shield Coverage 65%
Dimensions
Jacket (Insulation) Thickness 0.0335 0.851mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 20280
