30-00917
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

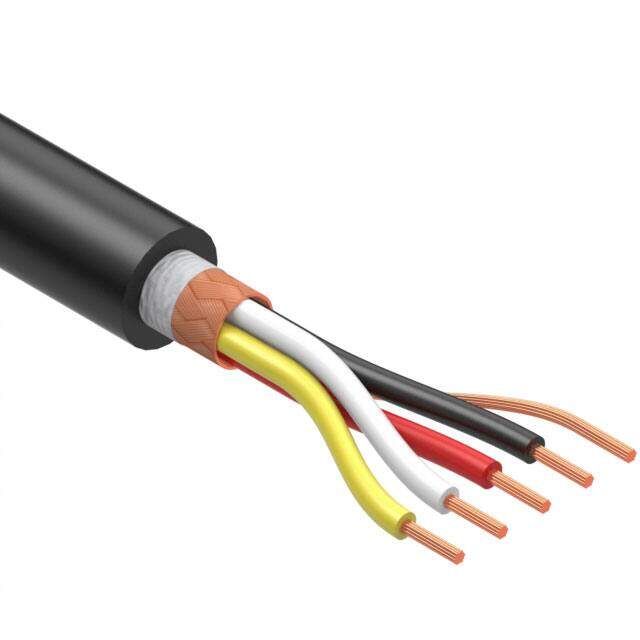

CBL 22AWG TPU SHLD 4CON
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.535646
≥1 USD $3.535646
≥10 USD $3.263682
≥100 USD $3.150356
≥500 USD $2.991701
Inventory: 781
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Bare
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 26/0.005
Jacket (Insulation) Diameter 0.209 (5.31mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Braid
Shield Coverage 65%
Dimensions
Jacket (Insulation) Thickness 0.0327 0.831mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 20280
