30-00492
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

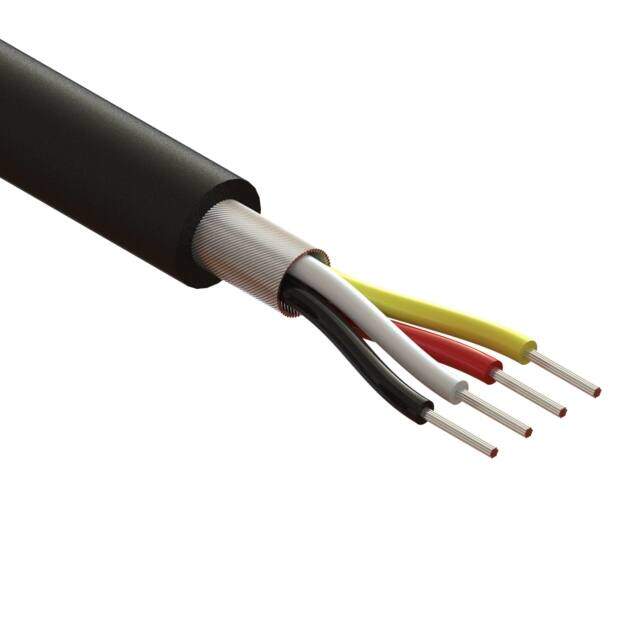

CBL 4CON 26AWG SHLD BLK 153M BIO
PDF
/
Buying Options
Total Price: USD $4.36
Unit Price: USD $4.3648
≥1 USD $4.3648
≥10 USD $3.5728
≥100 USD $2.77904
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Shield Material Copper, Tinned
Technical
Operating Temperature -40°C~70°C
Packaging Spool
Feature Biological Compatibility
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4
Wire Gauge 26 AWG
Voltage 150V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 26/40
Jacket (Insulation) Diameter 0.134 (3.40mm)
Conductor Insulation High Density Polyethylene (HDPE)
Shield Type Spiral
Shield Coverage 90%
Dimensions
Length 502.0' 153.0m
Jacket (Insulation) Thickness 0.0197 0.500mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
