30-00279
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

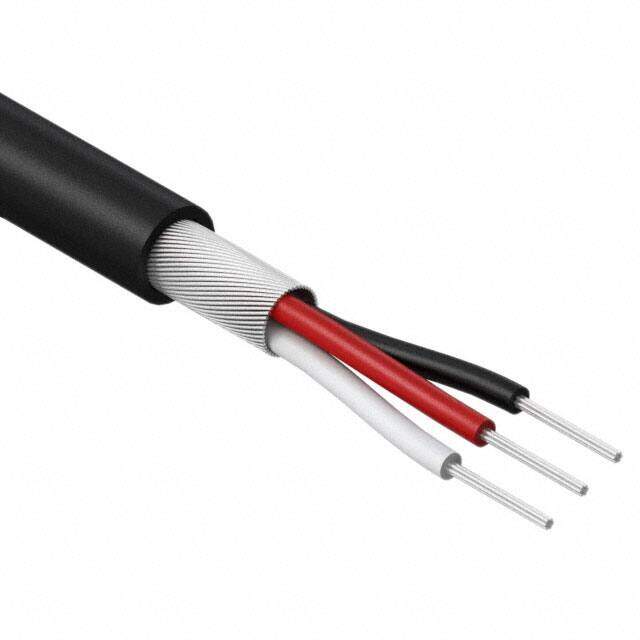

CABLE 3COND 32AWG SHLD 305M
PDF
/
Buying Options
Total Price: USD $10.01
Unit Price: USD $10.0144
≥1 USD $10.0144
≥10 USD $8.19632
≥100 USD $6.37472
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Technical
Operating Temperature 80°C
Packaging Spool
Published 2013
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Black
Number of Conductors 3
Wire Gauge 32 AWG
Voltage 150V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 32 AWG
Jacket Color Black
Conductor Strand 7/0.080
Jacket (Insulation) Diameter 0.079 (2.01mm)
Insulation Diameter 2.0066 mm
Conductor Insulation Polyethylene (PE)
Shield Type Spiral
Shield Coverage 85%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0098 0.250mm
Insulation Thickness 254μm
Compliance
RoHS Status ROHS3 Compliant
