30-00180
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

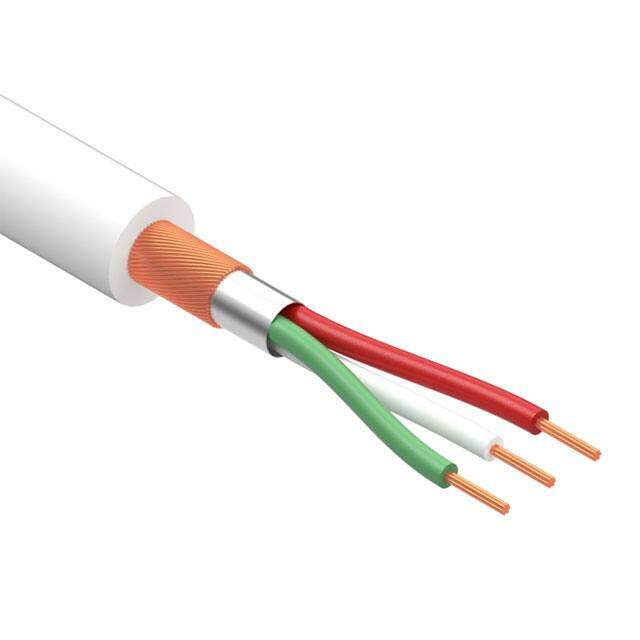

CBL 28AWG SHLD 3CON WHITE 153M
PDF
/
Buying Options
Total Price: USD $3.28
Unit Price: USD $3.2824
≥1 USD $3.2824
≥10 USD $2.68928
≥100 USD $2.09176
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Bare
Technical
Operating Temperature -10°C~80°C
Packaging Spool
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 3
Wire Gauge 28 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color White
Conductor Strand 7/36
Jacket (Insulation) Diameter 0.150 (3.81mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Spiral
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Compliance
RoHS Status ROHS3 Compliant
