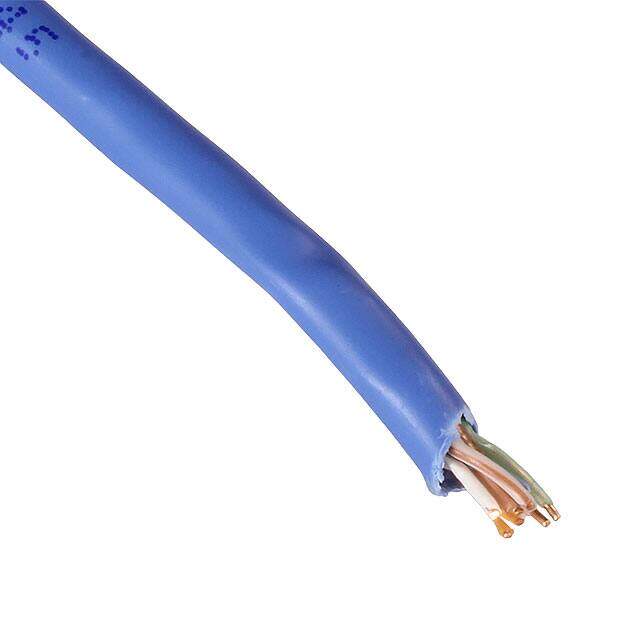

TE520P-BLRB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
Multi-Paired Cables CBL 520 4/24 CMP BL PRICE PER FOOT
PDF
/
Inventory: 6817
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style CMP
RoHS Status RoHS Compliant
Dimensions
Length 1000.0' 304.8m
Technical
Wire/Cable Diameter 4.42 mm
Conductor Insulation Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Diameter 0.195 (4.95mm)
Usage Datacom
Conductor Strand Solid
Jacket Color Blue
Wire/Cable Gauge 24 AWG
Wire/Cable Type Twisted Pair
Cable Type Multi-Pair, Cat5e
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 8 (4 Pair Twisted)
Shielding Unshielded
Color Blue
Min Operating Temperature -20°C
Max Operating Temperature -60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Series 520
Published 2013
Packaging Spool
Operating Temperature -20°C~60°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Conductor Material Copper, Bare
