RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables

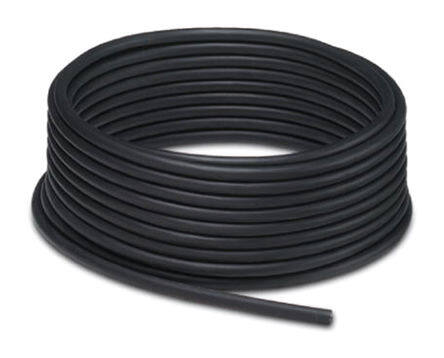

Description Sensor Cables / Actuator Cables SAC-8P-100,0- PVC/SH-0,25
PDF
/
Buying Options
Total Price: USD $484.92
Unit Price: USD $484.924
≥1 USD $484.924
≥10 USD $446.13272
Inventory: 94
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Insulation Thickness 762μm
Jacket (Insulation) Thickness 0.0299 0.759mm
Length 328.1' 100.0m

Technical

Number of Strands 32
Shield Coverage 85%
Shield Type Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 7.6962 mm
Jacket (Insulation) Diameter 0.303 (7.70mm)
Jacket Color Black
Wire/Cable Gauge 24 AWG
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 24 AWG
Number of Conductors 8
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Operating Temperature -25°C~105°C

Physical

Shield Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Weight 8.820104kg
Insulation Material PVC

Supply Chain

Factory Lead Time 4 Weeks
