1457432
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

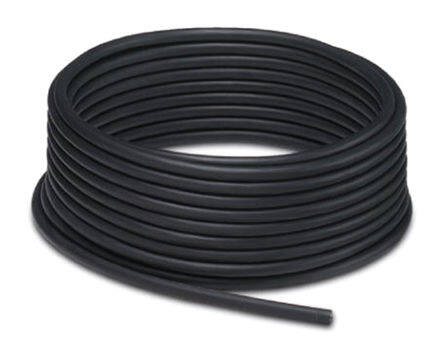

Phoenix Contact 3 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 0.75 mm CSA
PDF
/
Inventory: 2827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 328.1' 100.0m
Technical
Number of Strands 24
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.209 (5.31mm)
Jacket Color Black
Wire/Cable Gauge 18 AWG
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 18 AWG
Number of Conductors 3
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Operating Temperature -40°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 7 Weeks
