1422111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

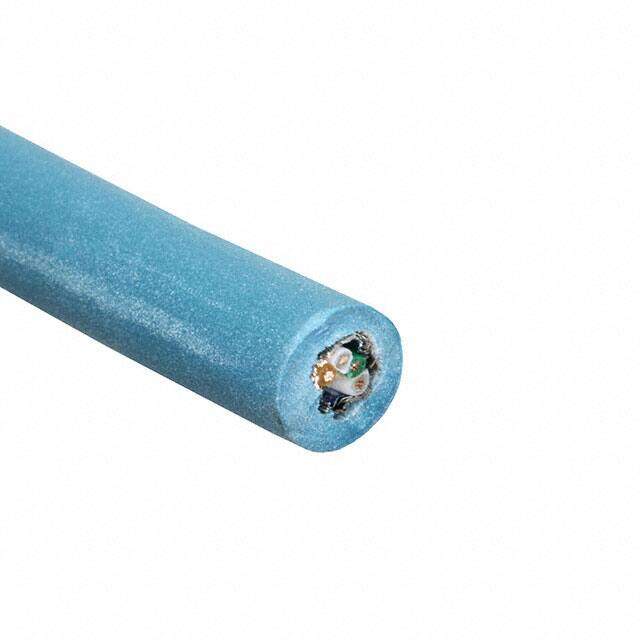

CABLE CAT5 4COND 26AWG BLUE 100M
PDF
/
Buying Options
Total Price: USD $667.21
Unit Price: USD $667.211841
≥1 USD $667.211841
Inventory: 10008
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 20963
RoHS Status RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0472 1.199mm
Length 328.1' 100.0m
Technical
Shield Coverage 70%
Shield Type Foil, Braid
Conductor Insulation Foam Polyethylene (FPE)
Jacket (Insulation) Diameter 0.252 (6.40mm)
Jacket Color Blue
Cable Type Multi-Pair, Cat5
Connector Support Type WIRE AND CABLE
Voltage 100V
Wire Gauge 26 AWG
Number of Conductors 4 (2 Pair Twisted)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Flame Retardant, Oil Resistant
Operating Temperature -40°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 4 Weeks
