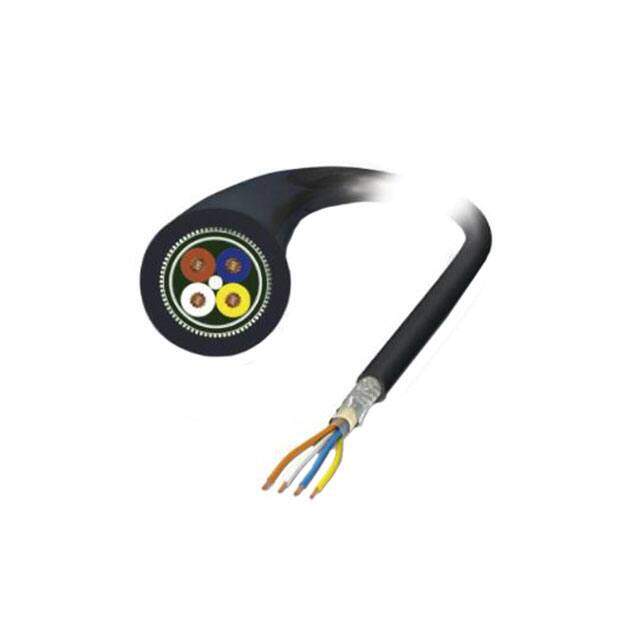

1416570
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
VS-OE-OE-936-100 0
PDF
/
Buying Options
Total Price: USD $1450.21
Unit Price: USD $1450.206036
≥1 USD $1450.206036
≥10 USD $1402.520348
≥25 USD $1392.770952
≥50 USD $1383.089331
≥100 USD $1354.641839
≥500 USD $1257.791874
Inventory: 1127
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Silver Coated
Jacket (Insulation) Material Polyethylene (XLPE), Irradiated
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -50°C~90°C
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4 (1 Twisted Quad)
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair, Cat5
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.285 (7.24mm)
Shield Type Foil, Braid
Shield Coverage 100%
Dimensions
Length 328.1' 100.0m
Jacket (Insulation) Thickness 0.0315 0.800mm
Compliance
RoHS Status RoHS Compliant
