1554211004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

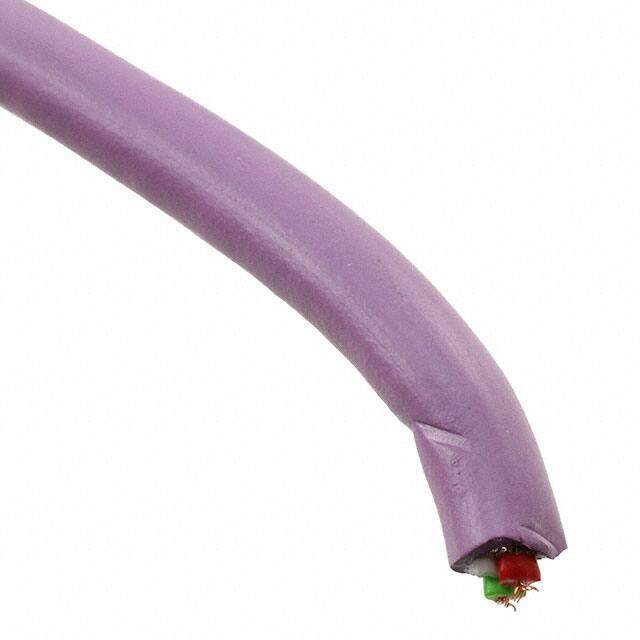

CABLE PROFIBUS DP 22AWG 10M
PDF
/
Buying Options
Total Price: USD $131.56
Unit Price: USD $131.56
≥1 USD $131.56
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Weld-Slag Oil Resistant (WSOR)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -10°C~60°C
Packaging Spool
Series Flamar 155421
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code unknown
Number of Conductors 2
Wire Gauge 22 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Violet
Conductor Strand 19/0.0059
Usage Industrial, Network
Jacket (Insulation) Diameter 0.323 (8.20mm)
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%, 80%
Dimensions
Length 656.2' 200.0m
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 21215
