1553212012
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

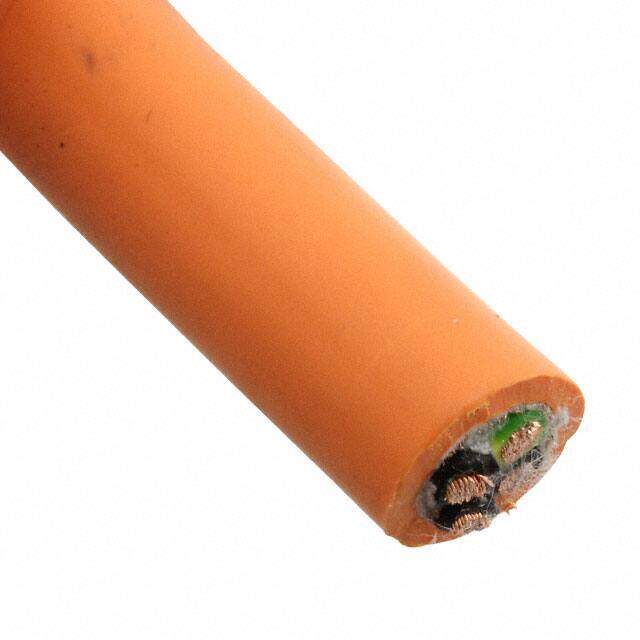

CABLE (4G6+2X(2X1.5)) WSOR OR SH
PDF
/
Buying Options
Total Price: USD $27.79
Unit Price: USD $27.788841
≥1 USD $27.788841
Inventory: 9791
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 21215
Dimensions
Length 1640.4' 500.0m
Technical
Shield Coverage 85%
Shield Type Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.705 (17.91mm)
Usage Industrial, Servo Motor
Conductor Strand 81/0.0059; 117/0.01
Jacket Color Orange
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 1kV
Wire Gauge 10 AWG, 16 AWG
Number of Conductors 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Flamar 155321
Operating Temperature -25°C~80°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Weld-Slag Oil Resistant (WSOR)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 13 Weeks
