09456000130
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

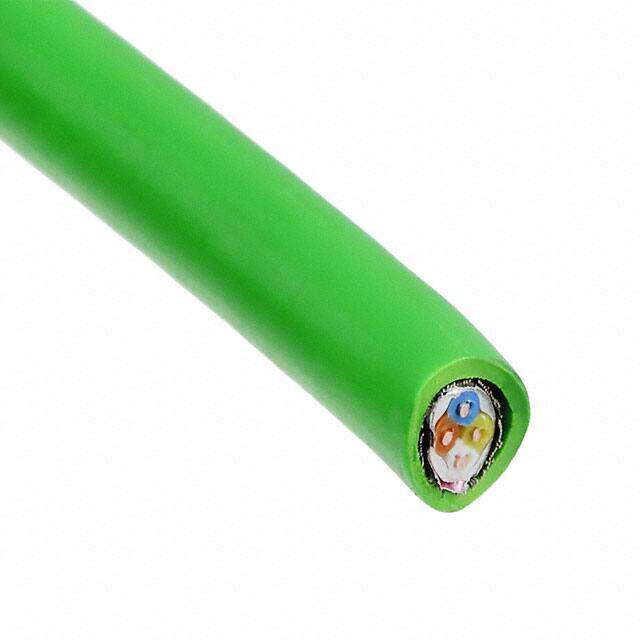

Multi-Paired Cables RJI CBL 4XAWG 22/1 SOL 20M RING
PDF
/
Inventory: 6254
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -40°C~75°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -40°C
Color Green
Number of Conductors 4 (1 Twisted Quad)
Wire Gauge 22 AWG
Voltage 2kV
Cable Type Multi-Pair, Cat5
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 22 AWG
Jacket Color Green
Conductor Strand Solid
Jacket (Insulation) Diameter 0.264 (6.71mm)
Insulation Diameter 6.7056 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 90%
Dimensions
Length 65.62' 20.00m
Compliance
RoHS Status ROHS3 Compliant
