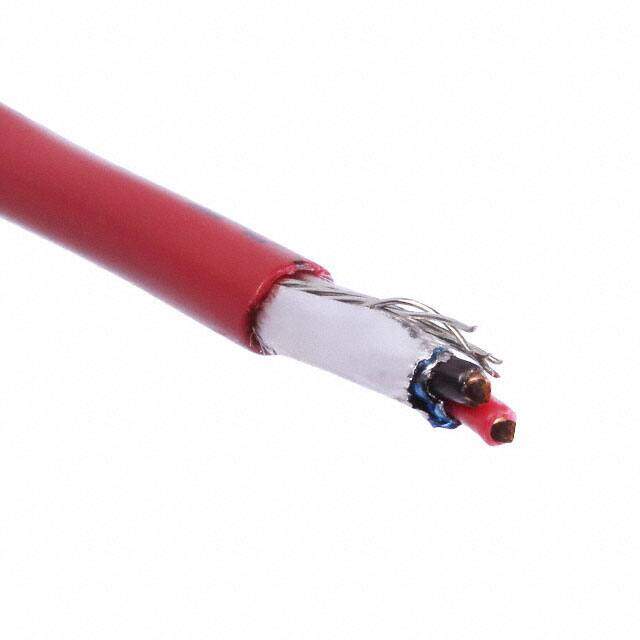

E3622S.46.03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 14AWG RED SHLD 5000'
PDF
/
Inventory: 4989
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Shield Material Flexfoil?
Technical
Operating Temperature 0°C~75°C
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Red
Number of Conductors 2
Wire Gauge 14 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 14 AWG
Jacket Color Red
Conductor Strand Solid
Usage Alarm, Safety
Jacket (Insulation) Diameter 0.210 (5.33mm)
Insulation Diameter 5.334 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 5000' 1524.0m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
