E2502S.30.03
RoHS
RoHS compliant
RoHS compliantPackage Aluminum
Category Cables, Wires / Multiple Conductor Cables
Description

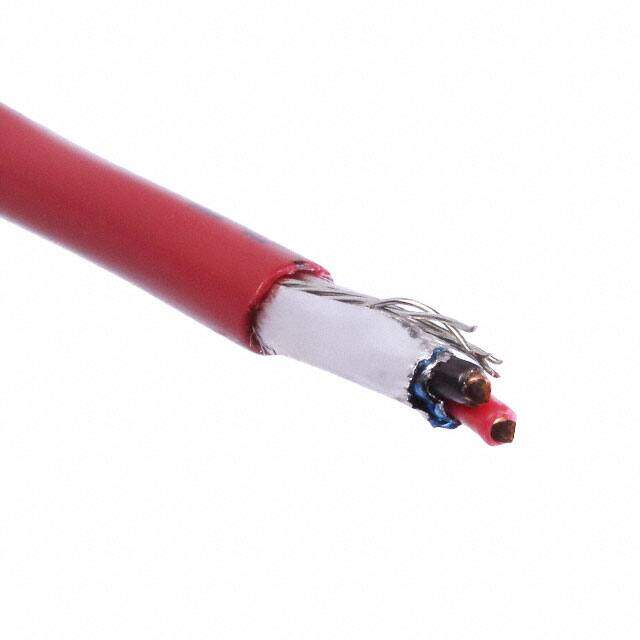

CABLE 2COND 18AWG RED SHLD 1000'
PDF
/
Buying Options
Total Price: USD $221.73
Unit Price: USD $221.7336
≥1 USD $221.7336
≥10 USD $205.13387
≥100 USD $198.01936
≥500 USD $193.276917
≥1000 USD $188.53384
≥3000 USD $176.676544
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.0132 mm
Jacket (Insulation) Diameter 0.158 (4.01mm)
Usage Alarm, Safety
Conductor Strand Solid
Jacket Color Red
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 2
Voltage - Rated DC 300V
Color Red
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Insulation Material PVC
Package / Case Aluminum
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
