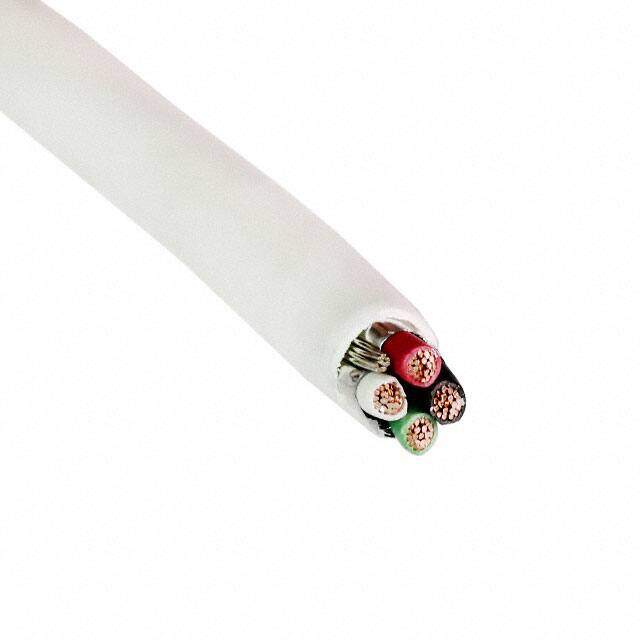

E2244S.41.02 image
Favorite
E2244S.41.02 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 4COND 16AWG WHT SHLD 1000'
PDF
/
Inventory: 6896
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m

Technical

Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 5.3086 mm
Jacket (Insulation) Diameter 0.209 (5.31mm)
Usage Alarm, Security, Sound
Conductor Strand 19/0.0117
Jacket Color White
Wire/Cable Gauge 16 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 16 AWG
Number of Conductors 4
Color White
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature 0°C~75°C

Physical

Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Conductor Material Copper, Bare
Insulation Material PVC
Mount Cable

Supply Chain

Factory Lead Time 6 Weeks
