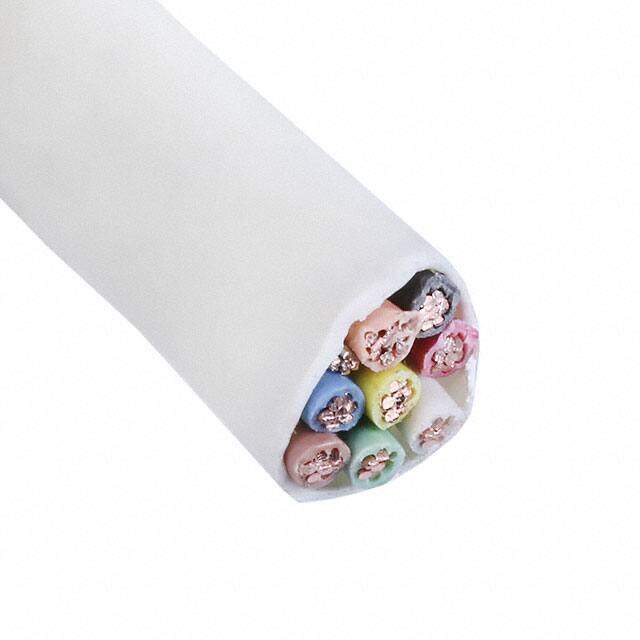

E2208S.41.86
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
8C/18 7/26BC OA SH CMP/CL3P
PDF
/
Buying Options
Total Price: USD $123.88
Unit Price: USD $123.8776
≥1 USD $123.8776
≥10 USD $101.35488
≥100 USD $78.83128
Inventory: 108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Shield Material Flexfoil?
Technical
Operating Temperature 0°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Natural
Voltage - Rated 300V
Number of Conductors 8
Approval Agency UL
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Natural
Conductor Strand 7/26
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.252 (6.40mm)
Insulation Diameter 6.4008 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Outside Diameter 6.02 mm
Number of Cores 8
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0080 0.203mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
