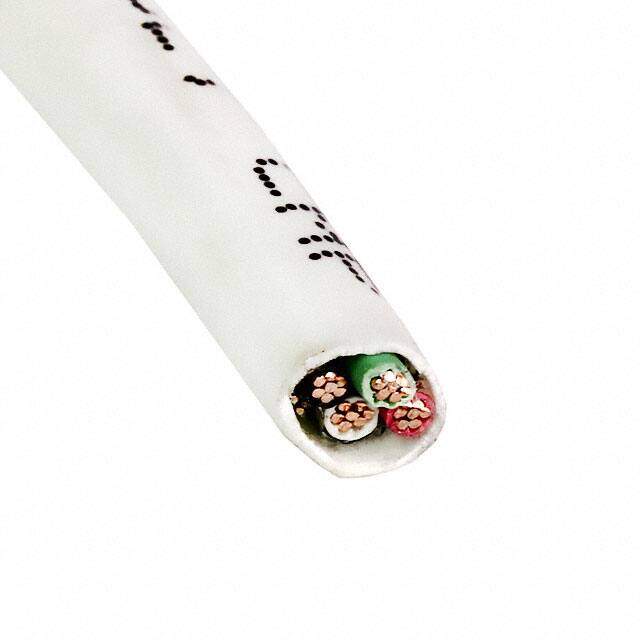

E2204S.25.86
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 4COND 18AWG NAT SHLD 500'
PDF
/
Inventory: 959
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Shield Material Flexfoil?
Technical
Operating Temperature 0°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Natural
Number of Conductors 4
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Natural
Conductor Strand 7/26
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.185 (4.70mm)
Insulation Diameter 4.699 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
