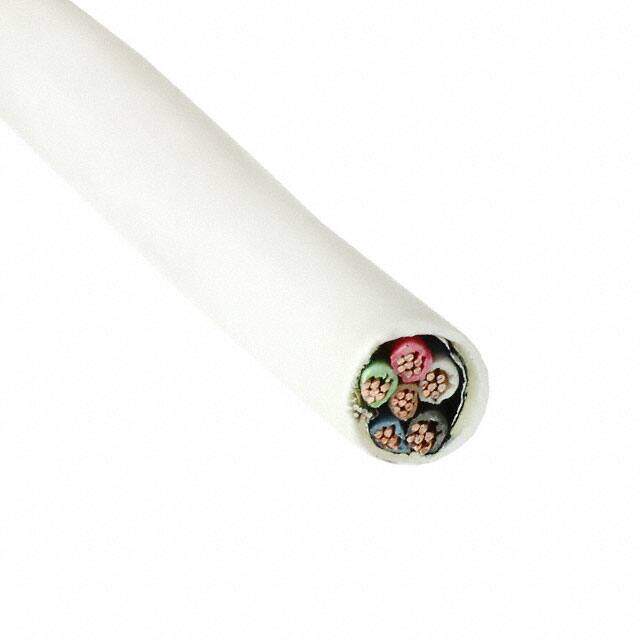

E2106S.41.86 image
Favorite
E2106S.41.86 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 6COND 22AWG NAT SHLD 1000
PDF
/
Buying Options
Total Price: USD $53.93
Unit Price: USD $53.9264
≥1 USD $53.9264
≥10 USD $44.12496
≥100 USD $34.31912
Inventory: 85
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Shield Material Flexfoil?

Technical

Operating Temperature 0°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Natural
Voltage - Rated 300V
Number of Conductors 6
Approval Agency UL
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Natural
Conductor Strand 7/30
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.176 (4.47mm)
Insulation Diameter 4.4704 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Outside Diameter 4.47 mm
Number of Cores 6

Dimensions

Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
