E2034S.30.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

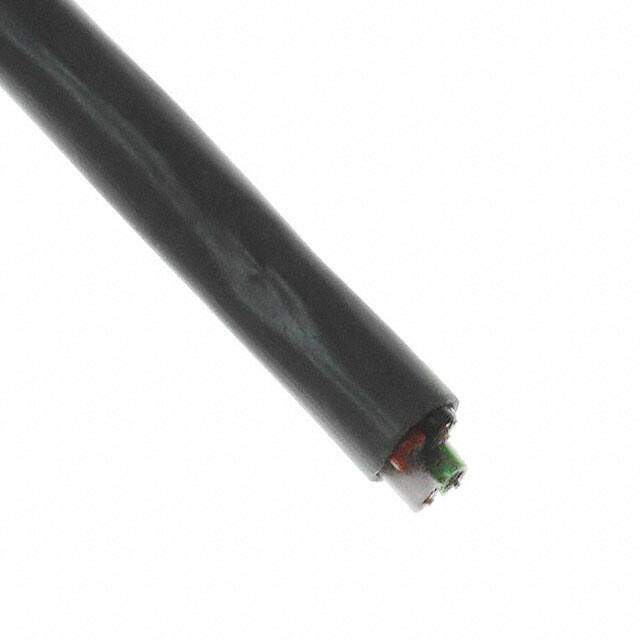

CABLE 4COND 18AWG GRY SHLD 1000
PDF
/
Buying Options
Total Price: USD $439.3
Unit Price: USD $439.3048
≥1 USD $439.3048
≥10 USD $406.41333
≥100 USD $392.31632
≥500 USD $382.920683
≥1000 USD $373.52392
≥3000 USD $350.031616
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.6736 mm
Jacket (Insulation) Diameter 0.184 (4.67mm)
Usage Alarm, Security, Sound
Conductor Strand 7/26
Jacket Color Gray
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 4
Voltage - Rated DC 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
