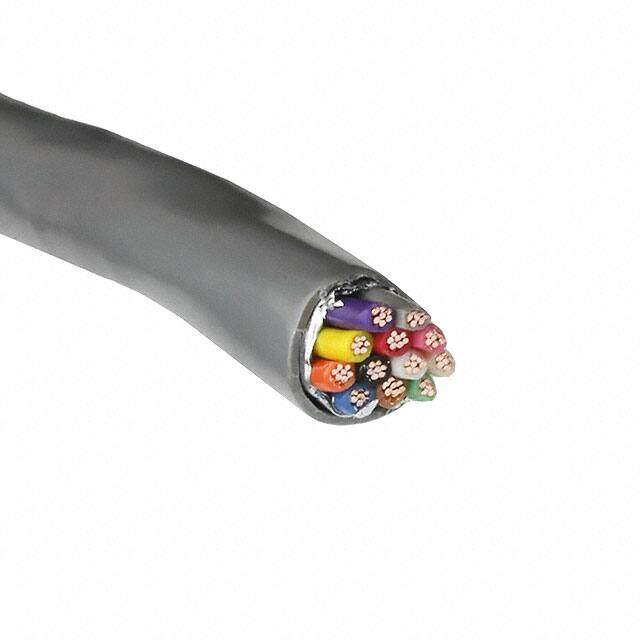

E2012S.41.10 image
Favorite
E2012S.41.10 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 12COND 22AWG SHLD 1000'
PDF
/
Inventory: 8516
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?

Technical

Operating Temperature -20°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 12
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.225 (5.72mm)
Insulation Diameter 5.715 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%

Dimensions

Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0080 0.203mm
Insulation Thickness 381μm

Compliance

RoHS Status RoHS Compliant
