E2006S.25.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

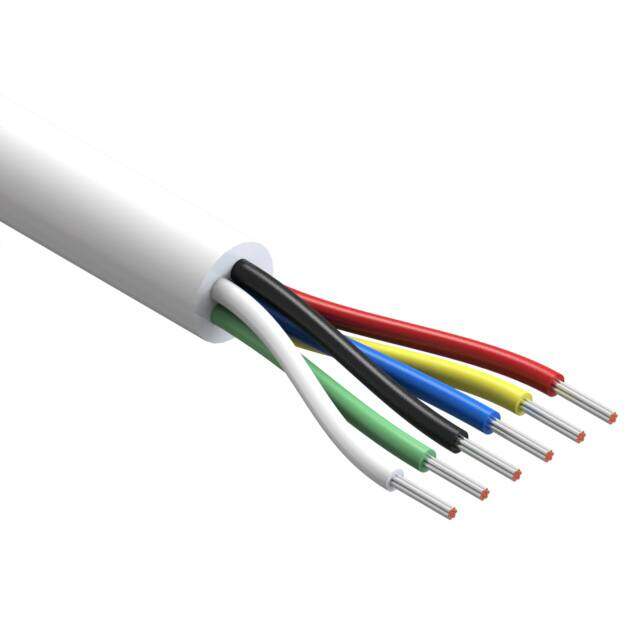

CABLE 6COND 22AWG GRAY SHLD 500'
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.244288
≥1 USD $0.244288
≥10 USD $0.232716
≥100 USD $0.218266
≥500 USD $0.208146
≥1000 USD $0.198026
≥3000 USD $0.187906
Inventory: 589
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Width 336.55mm
Length 500.0' 152.4m
Height 215.9mm
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.3942 mm
Jacket (Insulation) Diameter 0.173 (4.39mm)
Usage Alarm, Security, Sound
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Approval Agency UL
Number of Conductors 6
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Weight 5.216312kg
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
