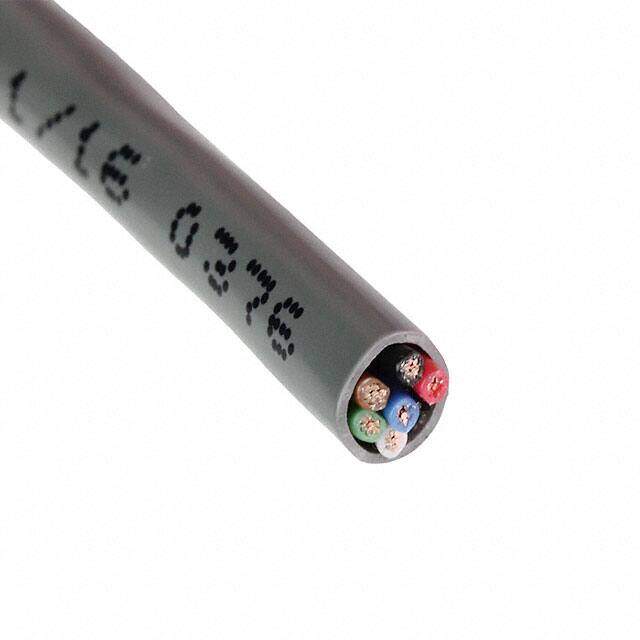

E2006S.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
Cable;6Cond;22AWG;7x30;BC;PVC ins;Foil;Gray PVC jkt;CMR
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.244288
≥1 USD $0.244288
≥10 USD $0.232716
≥100 USD $0.218266
≥500 USD $0.208146
≥1000 USD $0.198026
≥3000 USD $0.187906
Inventory: 1586
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Number of Conductors 6
Approval Agency UL
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.173 (4.39mm)
Insulation Diameter 4.3942 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
