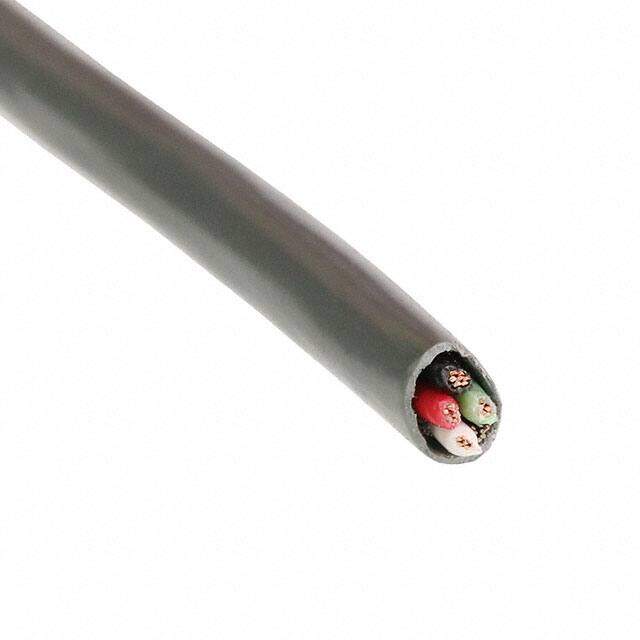

E2004S.41.10 image
Favorite
E2004S.41.10 image
Favorite
RoHS
RoHS RoHS compliant
Package 100
Category Cables, Wires / Multiple Conductor Cables
Description CABLE RISER SHIELD 4COND 22AWG
PDF
/
Buying Options
Total Price: USD $21.76
Unit Price: USD $21.7624
≥1 USD $21.7624
≥10 USD $17.80768
≥100 USD $13.8512
Inventory: 91
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m

Technical

Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 3.6576 mm
Jacket (Insulation) Diameter 0.144 (3.66mm)
Usage Alarm, Security, Sound
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Approval Agency UL
Number of Conductors 4
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Operating Temperature -20°C~75°C

Physical

Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Insulation Material PVC
Package / Case 100
Mount Cable

Supply Chain

Factory Lead Time 6 Weeks
