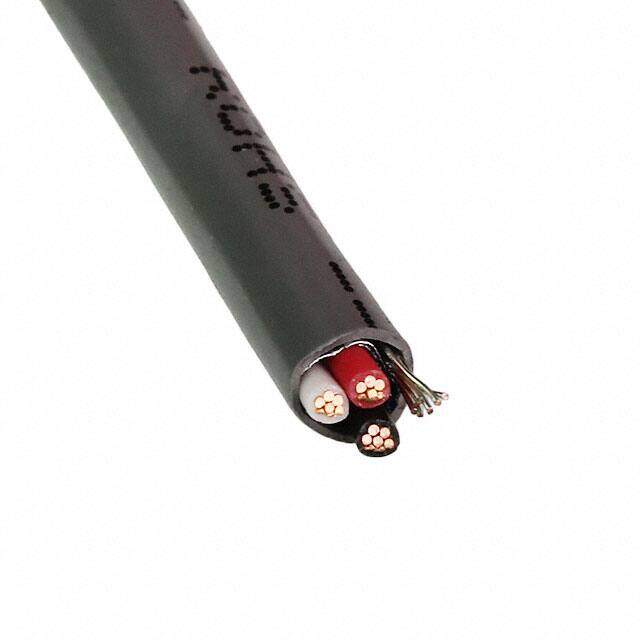

E2003S.18.10 image
Favorite
E2003S.18.10 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 3COND 22AWG GRAY SHLD 500'
PDF
/
Inventory: 4900
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?

Technical

Operating Temperature -20°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 3.429 mm
Jacket (Insulation) Diameter 0.135 (3.43mm)
Usage Alarm, Security, Sound
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 3
Color Grey

Compliance

RoHS Status RoHS Compliant

Dimensions

Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 500.0' 152.4m
