E1532S.46.03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

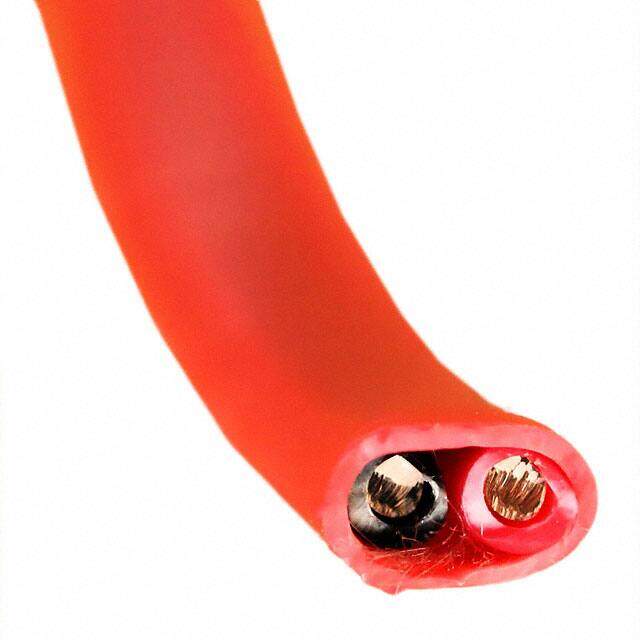

CABLE 2COND 12AWG RED 5000'
PDF
/
Inventory: 2830
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-3
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 5000' 1524.0m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 6.1976 mm
Jacket (Insulation) Diameter 0.244 (6.20mm)
Usage Alarm, Safety
Conductor Strand Solid
Jacket Color Red
Wire/Cable Gauge 12 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 12 AWG
Number of Conductors 2
Color Red
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Operating Temperature -20°C~75°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Bare
Insulation Material PVC
Mount Cable
