E1062S.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

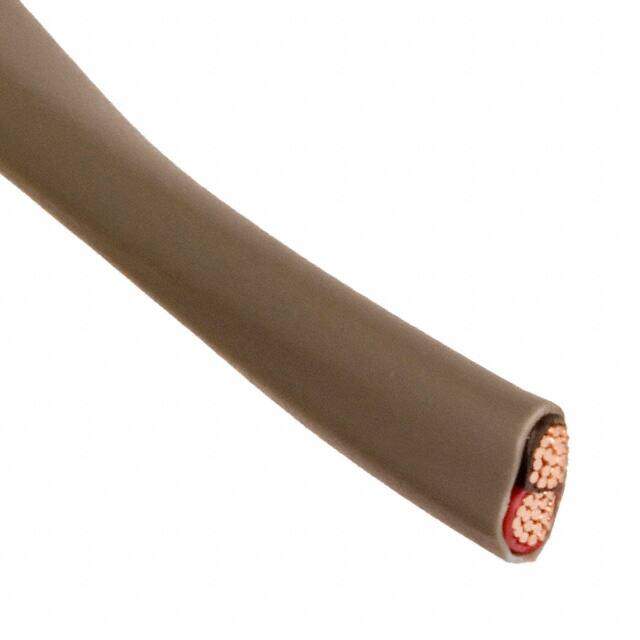

CABLE 2COND 12AWG GRAY 1000
PDF
/
Buying Options
Total Price: USD $615.27
Unit Price: USD $615.2696
≥1 USD $615.2696
≥10 USD $569.20747
≥100 USD $549.46672
≥500 USD $536.304683
≥1000 USD $523.14416
Inventory: 26
Minimum: 1
-
+
Technical Details
Compliance
Ratings ASTM B-3
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 6.604 mm
Jacket (Insulation) Diameter 0.260 (6.60mm)
Usage Alarm, Security, Sound
Conductor Strand 19/0.0185
Jacket Color Gray
Wire/Cable Gauge 12 AWG
Cable Length 304.8m
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 150V
Wire Gauge 12 AWG
Number of Conductors 2
Voltage - Rated DC 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Operating Temperature -20°C~75°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Annealed Bare
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
