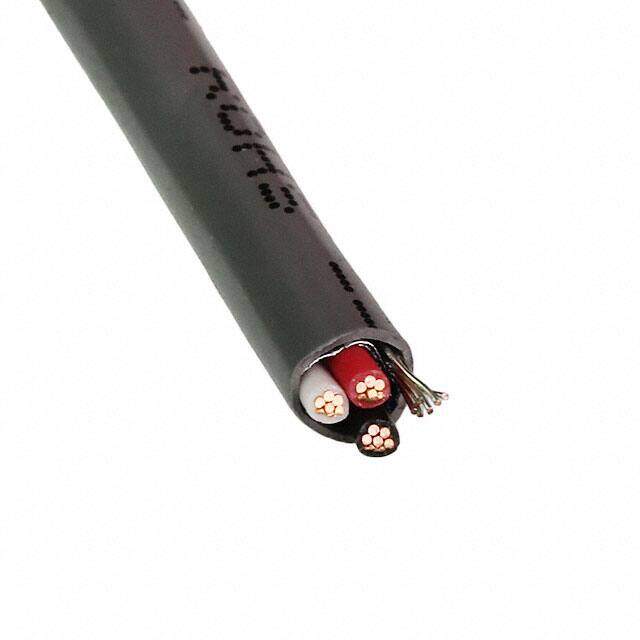

E1033S.30.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
3 Gray Alarm Security Sound Poly-Vinyl Chloride (PVC) Riser Multi-Conductor Cable 1000.0' 304.8m 18AWG 300V -20C~75C
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.244825
≥1 USD $0.244825
≥10 USD $0.229618
≥100 USD $0.21897
≥500 USD $0.208331
≥1000 USD $0.197683
Inventory: 1075
Minimum: 1
-
+
Technical Details
Compliance
Ratings ASTM B-3
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.2164 mm
Jacket (Insulation) Diameter 0.166 (4.22mm)
Usage Alarm, Security, Sound
Conductor Strand 7/26
Jacket Color Gray
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 3
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Operating Temperature -20°C~75°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Annealed Bare
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
