E1032S.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

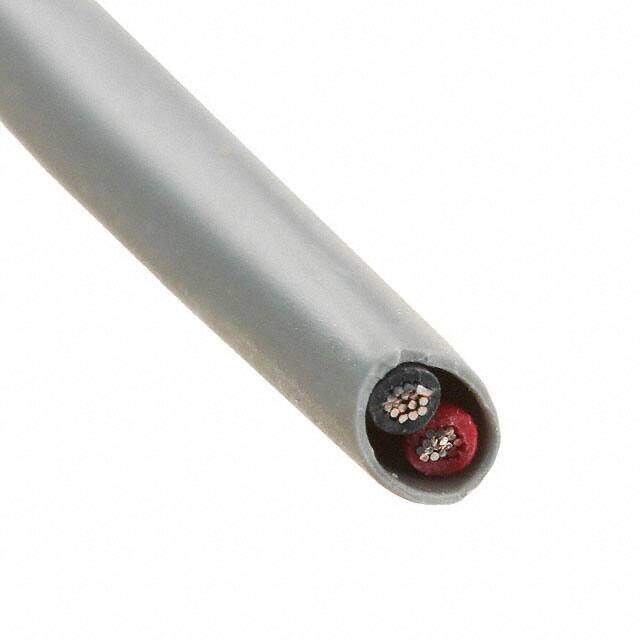

CABLE RISER UNSHLD 2COND 18AWG
PDF
/
Buying Options
Total Price: USD $18.31
Unit Price: USD $18.3128
≥1 USD $18.3128
≥10 USD $14.9864
≥100 USD $11.6556
Inventory: 27
Minimum: 1
-
+
Technical Details
Compliance
Ratings ASTM B-3
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 3.9624 mm
Jacket (Insulation) Diameter 0.156 (3.96mm)
Usage Alarm, Security, Sound
Conductor Strand 7/26
Jacket Color Gray
Wire/Cable Gauge 18 AWG
Cable Length 304.8m
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 2
Voltage - Rated DC 300V
Color Grey
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Operating Temperature -25°C~75°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Annealed Bare
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
