C9129A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

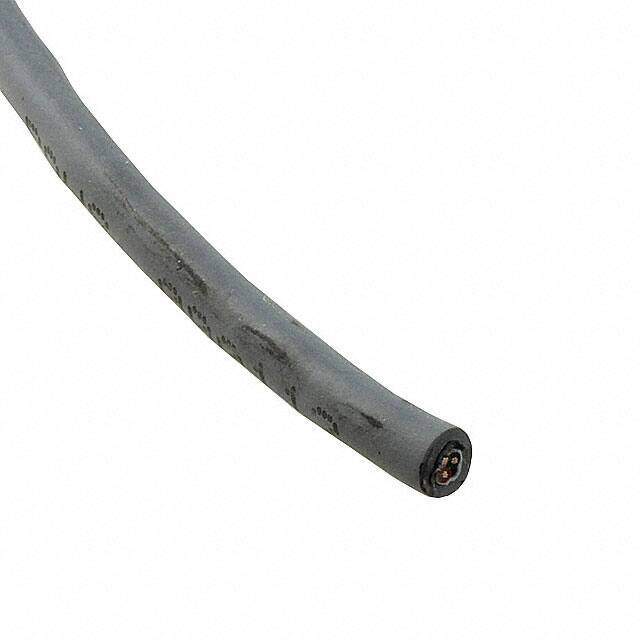

CABLE 3COND 18AWG GRY SHLD 1000
PDF
/
Buying Options
Total Price: USD $160.63
Unit Price: USD $160.6264
≥1 USD $160.6264
≥10 USD $142.77648
≥100 USD $129.38992
Inventory: 102
Minimum: 1
-
+
Technical Details
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -30°C~105°C
Packaging Spool
Series Exzel?
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color Grey
Voltage - Rated DC 300V
Number of Conductors 3
Approval Agency CSA, UL
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Jacket (Insulation) Diameter 0.239 (6.07mm)
Insulation Diameter 6.0706 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Alternative Model
