C9045A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

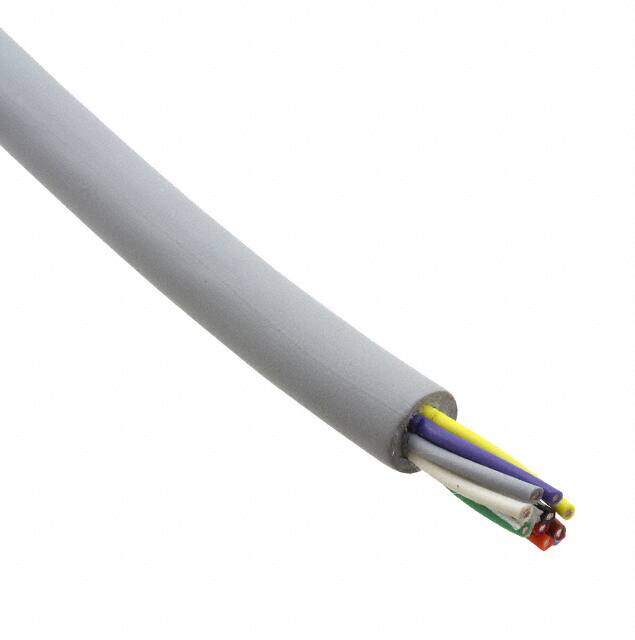

CABLE 10COND 16AWG GRAY 1000'
PDF
/
Inventory: 6640
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 10.6934 mm
Jacket (Insulation) Diameter 0.421 (10.69mm)
Conductor Strand 19/0.0117
Jacket Color Gray
Wire/Cable Gauge 16 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 16 AWG
Approval Agency CSA, UL
Number of Conductors 10
Voltage - Rated DC 300V
Color Grey
Min Operating Temperature -30°C
Max Operating Temperature 105°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Series Exzel?
Packaging Spool
Operating Temperature -30°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
