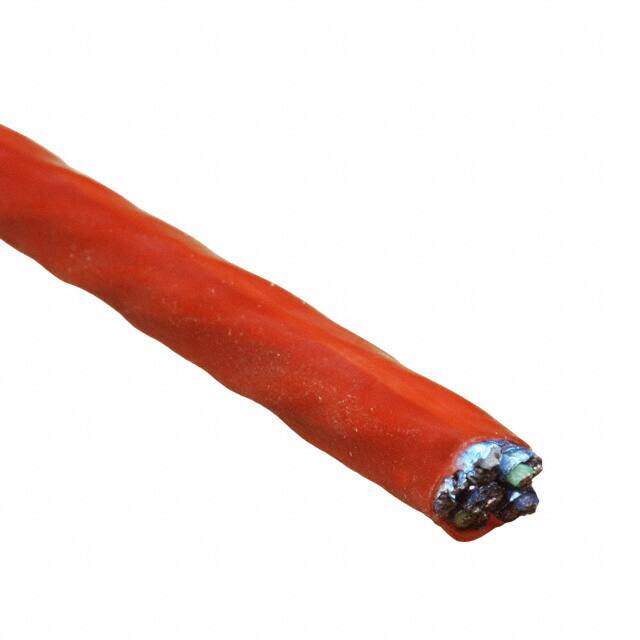

C8132.41.03
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 12COND 22AWG 1000
PDF
/
Inventory: 2141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 381μm
Jacket (Insulation) Thickness 0.0150 0.381mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Fluorinated Ethylene-Propylene (FEP)
Insulation Diameter 7.8486 mm
Jacket (Insulation) Diameter 0.309 (7.85mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Red
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 12 (6 Pair)
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 200°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Flame Retardant
Packaging Spool
Operating Temperature -40°C~200°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Fluorinated Ethylene-Propylene (FEP)
Conductor Material Copper, Annealed Tinned
Insulation Material FEP
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
