C8123.41.86
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

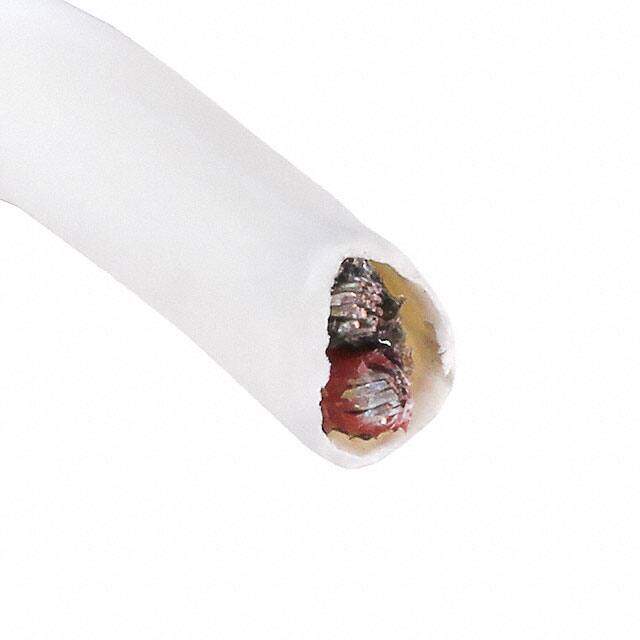

CABLE 1 PR SHLD PVC 18AWG 1000'
PDF
/
Buying Options
Total Price: USD $218.78
Unit Price: USD $218.7768
≥1 USD $218.7768
≥10 USD $179.0008
≥100 USD $139.22304
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~75°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Natural
Voltage - Rated DC 300V
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Natural
Conductor Strand 19/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.160 (4.06mm)
Insulation Diameter 4.064 mm
Conductor Insulation Fluorinated Ethylene-Propylene (FEP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0140 0.356mm
Insulation Thickness 355.6μm
Compliance
RoHS Status RoHS Compliant
