C6351A.18.10
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

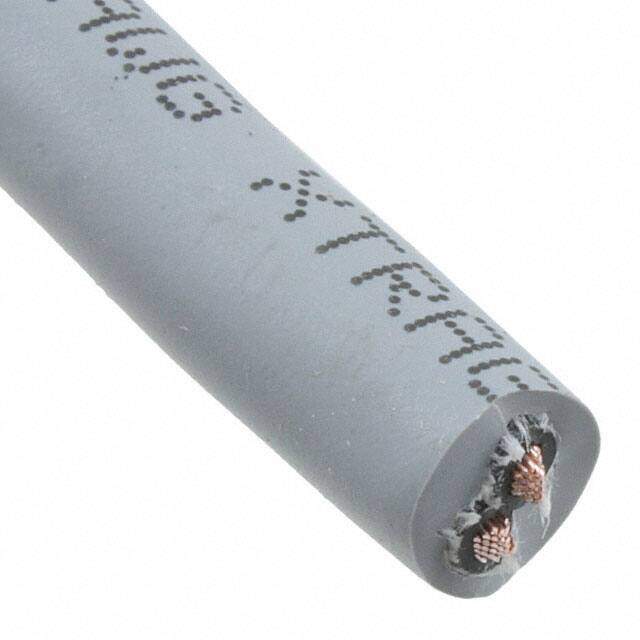

CABLE 2COND 20AWG GRAY 500'
PDF
/
Inventory: 5945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 635μm
Jacket (Insulation) Thickness 0.0250 0.635mm
Length 500.0' 152.4m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.8768 mm
Jacket (Insulation) Diameter 0.192 (4.88mm)
Usage Communication, Control
Conductor Strand 7/28
Jacket Color Gray
Wire/Cable Gauge 20 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 2
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
