C6061A.48.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

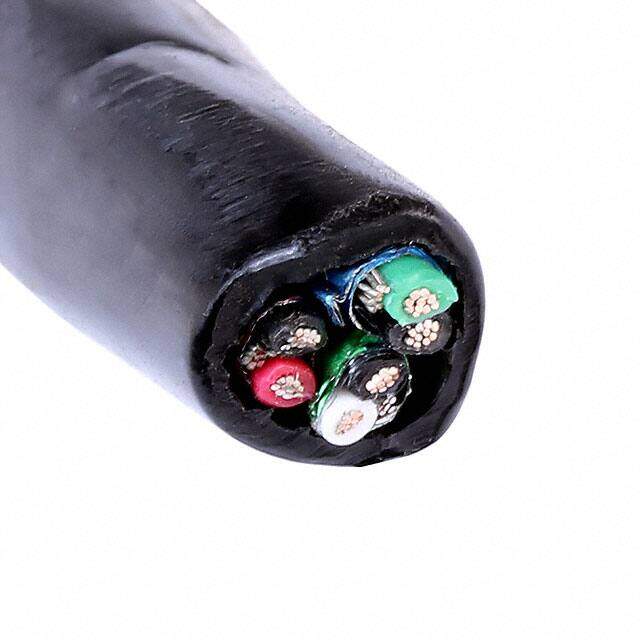

MULTI-PAIR 6COND 20AWG 10000'
PDF
/
Inventory: 4733
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 1.1938mm
Jacket (Insulation) Thickness 0.0470 1.194mm
Length 10000' 3048.0m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Insulation Diameter 8.636 mm
Jacket (Insulation) Diameter 0.340 (8.64mm)
Usage Audio-Video, Home
Conductor Strand 10/30
Jacket Color Black
Wire/Cable Gauge 20 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair
Voltage 350V
Wire Gauge 20 AWG
Number of Conductors 6 (3 Pair Twisted)
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Direct Burial
Operating Temperature -20°C~80°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Polyethylene (PE)
Conductor Material Copper, Tinned
Insulation Material PE
