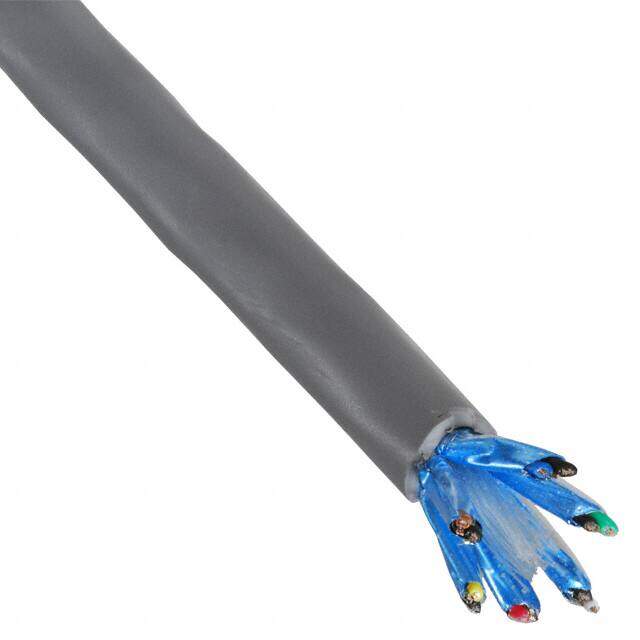

C6041A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 12COND 22AWG 1000
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyethylene (PE)
Insulation Diameter 9.6774 mm
Jacket (Insulation) Diameter 0.381 (9.68mm)
Usage Computer
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 12 (6 Pair Twisted)
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature -20°C~80°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
