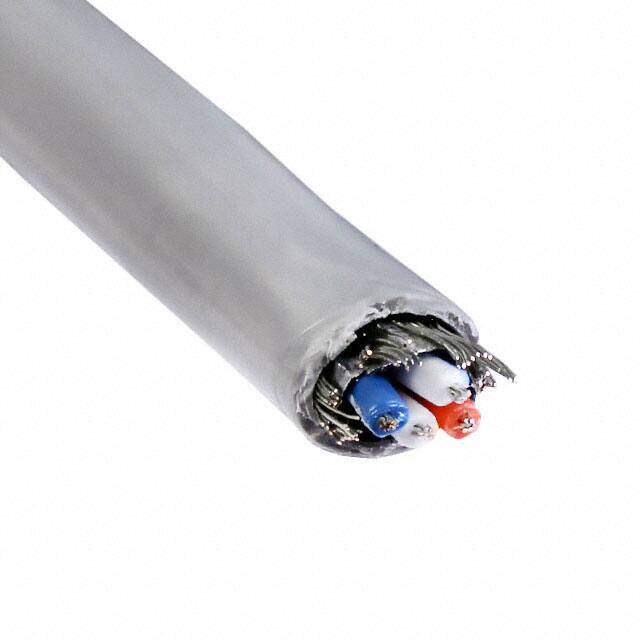

C4842A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
2P/24 7/32TC FOIL/BRD SHLD 1000'
PDF
/
Buying Options
Total Price: USD $92.97
Unit Price: USD $92.972
≥1 USD $92.972
≥10 USD $76.07248
≥100 USD $59.1668
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?, Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Low Capacitance
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated DC 30V
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 24 AWG
Voltage 30V
Cable Type Multi-Pair
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 24 AWG
Jacket Color Gray
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.304 (7.72mm)
Insulation Diameter 7.7216 mm
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%, 90%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
