C4197A.30.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

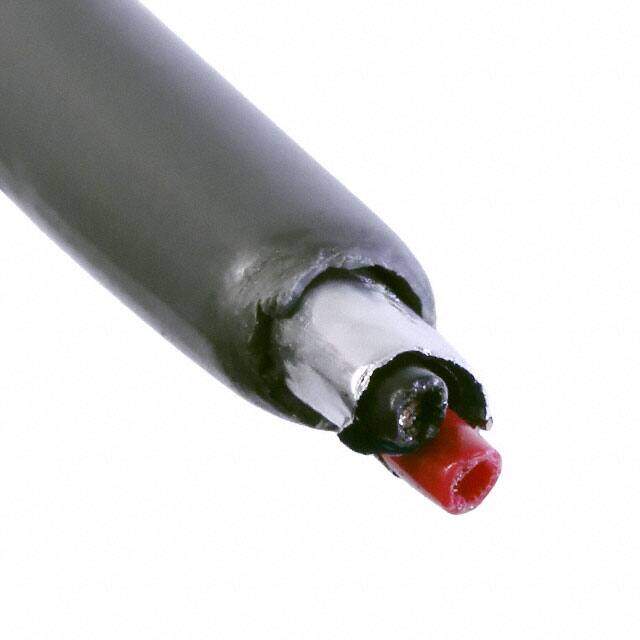

CABLE 2COND 18AWG GRY SHLD 1000'
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5401
≥1 USD $0.5401
≥10 USD $0.505261
≥100 USD $0.480867
≥500 USD $0.456474
Inventory: 1054
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~105°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.203 (5.16mm)
Insulation Diameter 5.1562 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 762μm
Compliance
RoHS Status RoHS Compliant
