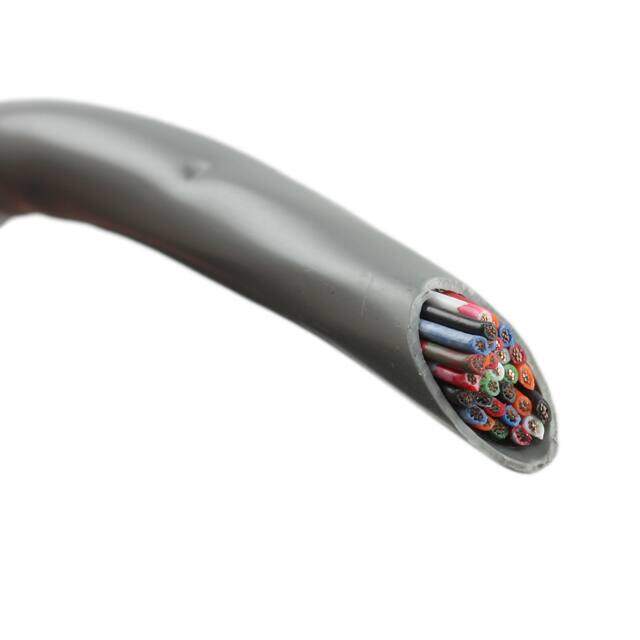

C4077A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 30COND 22AWG GRAY 1000'
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.896098
≥1 USD $2.896098
≥10 USD $2.748126
Inventory: 3017
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Voltage - Rated DC 300V
Number of Conductors 30
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.389 (9.88mm)
Insulation Diameter 9.8806 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Outside Diameter 9.88 mm
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Alternative Model
