C4066A.30.10
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

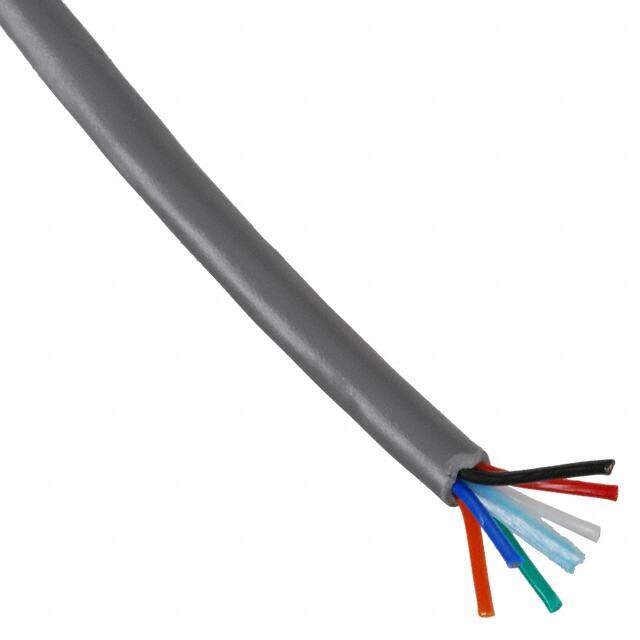

CABLE 6COND 22AWG GRAY 1000'
PDF
/
Inventory: 5579
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 5.5372 mm
Jacket (Insulation) Diameter 0.218 (5.54mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 6
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
