C2895A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

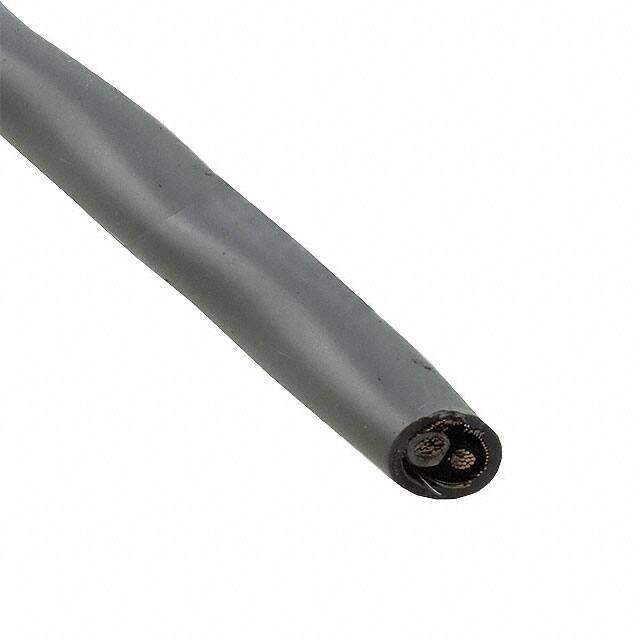

CABLE 2COND 16AWG GRAY SHLD 500'
PDF
/
Inventory: 1323
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 500.0' 152.4m
Technical
Shield Coverage 85%
Shield Type Spiral
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 6.731 mm
Jacket (Insulation) Diameter 0.265 (6.73mm)
Usage Communication, Control
Conductor Strand 19/0.0117
Jacket Color Gray
Wire/Cable Gauge 16 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 16 AWG
Number of Conductors 2
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -20°C~80°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
Mount Cable
