RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables

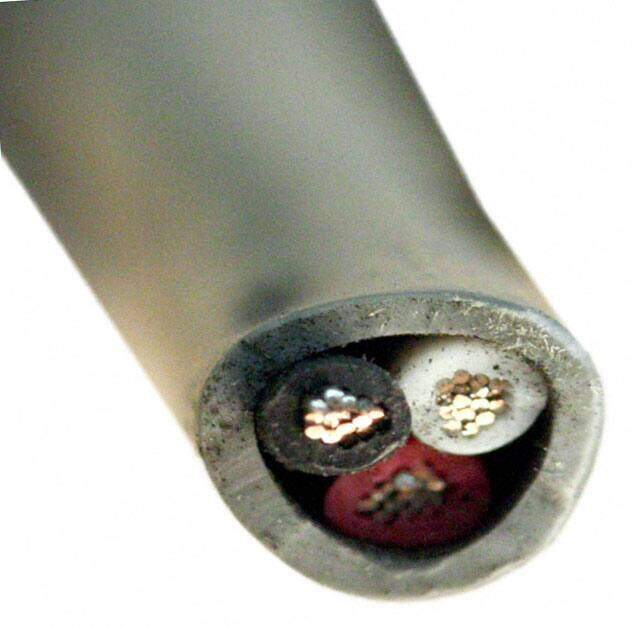

Description CABLE 3COND 18AWG GRAY 5000'
PDF
/
Inventory: 9262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)

Technical

Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 3
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.236 (5.99mm)
Insulation Diameter 5.9944 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)

Dimensions

Length 5000' 1524.0m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm

Compliance

RoHS Status RoHS Compliant
Ratings ASTM B-33
