C2830A.46.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

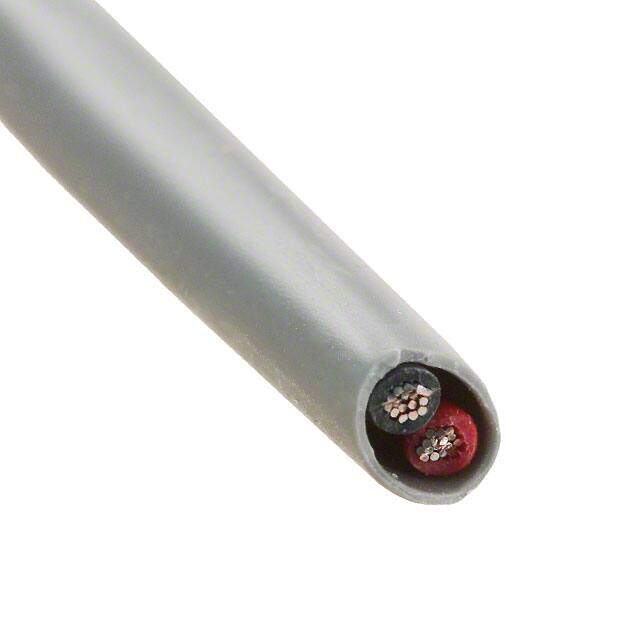

CABLE 2COND 18AWG GRAY 5000'
PDF
/
Inventory: 8871
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.190 (4.83mm)
Insulation Diameter 4.826 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Dimensions
Length 5000' 1524.0m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
